Product Center

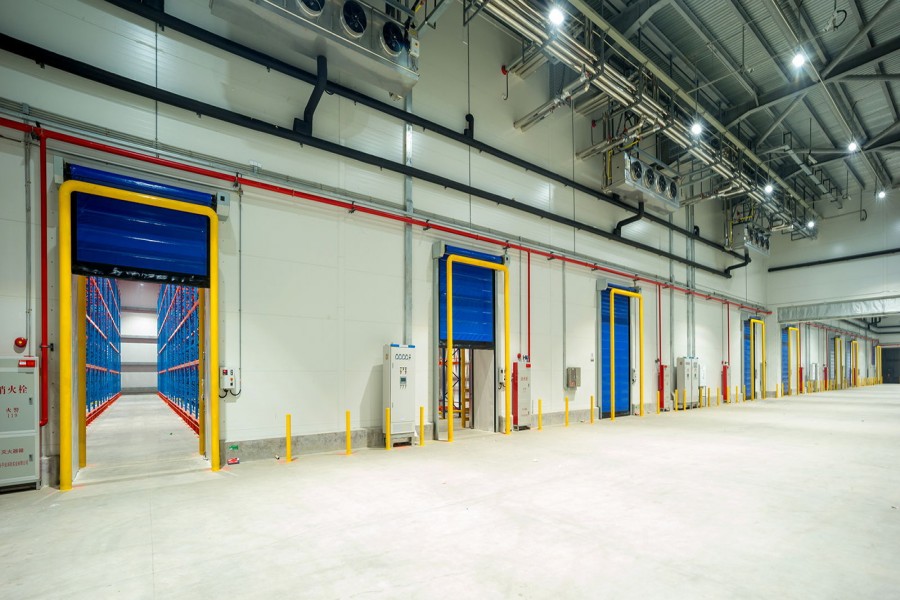

HSR-IPM High Speed Insulation Rolling Shutter Door

Thermal insulation, safe and efficient, reduce air convection in the process of loading and unloading of the cold storage, reduce energy consumption; Used for cold chain, food, medicine and other constant temperature or low temperature storage.

Technical description:

    ●Door size:

    Minimum size W2000/H2000

    Maximum size W3000/H3000

    ●Door opening/closing speed:

    Minimum closing speed 0.8m/s

    Maximum opening speed 1.5m/s

    ●Door panel material:

    0.8mm PVC curtain/ yellow, orange, blue optional

    ●Combined door frame:

    optional

    ●Motor cover:

    optional

    ●Scroll cover:

    optional

    ●Installation position:

    Outside the cold storage

    ●Open configuration (optional) :

    Remote control/3-key button/ geomagnetic/radar/pull-cord switch

    ●Service life:

    More than 1 million times

    ●Operating ambient temperature:

    - 10 ℃ ~ + 40 ℃


Product features:

PVC thermal high speed door is designed with the insulated curtain, which has certain insulation function. It can be used in a low-temperature environment to reduce energy loss, preserve heat, prevent fog and reduce air condensation when the air cools.

The innovative soft bottom edge design with anti-collision reset function can avoid accidents, which greatly reduces the door curtain damage caused by accidental collision, and reduces the mainte-nance cost.

It is used in combination with ordinary translational cold-storage doors in low temperature environment requir-ing frequent and quick opening.

Typical application industries: food, medicine, cold storage, etc.
